1.2 TP System Architecture
A TP system is the computer system — both hardware and software — that hosts the transaction programs. The software parts of a TP system usually are structured in a special way. As you can see from Figure 1.2 , the TP system has several main components. Different parts of the application execute in each of these components.
- End-user device: An end user is someone who requests the execution of transactions, such
as a customer of a bank or of an Internet retailer. An end-user device could be a physical device,
such as a cash register or gasoline pump. Or it could be a web browser running on a desktop device,
such as a personal computer (PC). If it is a dumb device, it simply displays data that is sent to
it and sends data that the user types in. If it is a smart device, then it executes application
code that is the front-end program.
More on service-oriented architectures
Read about using SOA for big data and cloud data management
Find out when and why SOA and RESTful interfaces should be combined
Learn how to test Business Process Execution Language processes in SOA
- Front-end program: A front-end program is an application code that interacts with the end-user device. Usually it sends and receives menus and forms, to offer the user a selection of transactions to run and to collect the user's input. Often, the device is a web browser and the front-end program is an application managed by a web server that communicates with the browser via HTTP. The front-end program validates the user's input and then sends a request message to another part of the system whose job is to actually execute the transaction.
- Request controller: A request controller is responsible for receiving messages from front-end programs and turning each message into one or more calls to the proper transaction programs. In a centralized system, this is simply a matter of calling a local program. In a distributed TP system, it requires sending the message to a system where the program exists and can execute. If more than one program is needed, it tracks the state of the request as it moves between programs.
- Transaction server: A transaction server is a process that runs the parts of the transaction program that perform the work the user requested, typically by reading and writing a shared database, possibly calling other programs, and possibly returning a reply that is routed back to the device that provided the input for the request.
- Database system: A database system manages shared data that is needed by the application to do its job.
@69576 For example, in an Internet-based order processing application, a user submits orders via a web browser. The front-end program is managed by a web server, which reads and writes forms and menus and perhaps maintains a shopping cart. A request controller routes requests from the web server to the transaction server that can process the order the user requested. The transaction server processes the order, which requires accessing the database that keeps track of orders, catalog information, and warehouse inventory, and perhaps contacts another transaction server to bill a credit card for the order.
The transaction programs that run in the server are of a limited number of types that match operational business procedures, such as shipping an order or transferring funds. Typically there are a few dozen and usually no more than a few hundred. When applications become larger than this, usually they are partitioned into independent applications of smaller size. Each one of these programs generally does a small amount of work. There's no standard concept of an average size of a transaction program, because they all differ based on the application. But a typical transaction might have between zero and 30 disk accesses, a few thousand up to a few million instructions, and at least two messages, but often many more depending on how distributed it is. It may be distributed because different application services are needed to process it or because multiple machines are needed to handle the application load. The program generally is expected to execute within a second or two, so that the user can get a quick response. Later on we'll see another, more technical reason for keeping transactions short, having to do with locking conflicts.
Database systems play a big role in supporting transaction programs, often a bigger role than the application programs themselves. Although the database can be small enough to fit in main memory, it is often much larger than that. Some databases for TP require a large number of nonvolatile storage devices, such as magnetic or solid state disks, pushing both storage and database system software technology to the limit. To scale even larger, the database may be replicated or partitioned onto multiple machines.
Another major category of TP software products is transactional middleware, which is a layer of software components between TP applications and lower level components such as the operating system, database system, and system management tools. These components perform a variety of functions. They can help the application make the most efficient use of operating system processes, database connections, and communications sessions, to enable an application to scale up. For example, they may provide functions that client applications can use to route requests to the right server applications. They can integrate the transaction abstraction with the application, operating system, and database system, for example, to enable the execution of distributed transactions, sometimes across heterogeneous environments. They can integrate system management tools to simplify application management, for example, so that system managers can balance the load across multiple servers in a distributed system. And they may offer a programming interface and/or configurable properties that simplify the use of related services that originate in the operating system and database system.
Transactional middleware product categories have evolved rapidly over the past fifteen years. Before the advent of the World Wide Web (WWW), transactional middleware products were called TP monitors or on-line TP (OLTP) monitors. During the mid 1990s, application server products were introduced to help application developers cope with new problems introduced by the Web, such as integrating with web servers and web browsers. Initially, application servers formed a bridge between existing commercial systems managed by TP monitors and the Internet. In a relatively short time, the functionality of application servers and TP monitors converged. During the same period, message-oriented transactional middleware and object request brokers became popular. Message-oriented middleware became the foundation of a product category called enterprise application integration systems. The adoption of standard Internet-based protocols for application communication, called Web Services, has led to the enterprise service bus, another transactional middleware product. And finally, workflow products have become popular to help users define and manage long-running business processes. Although transactional middleware products usually are marketed as a complete environment for developing and executing TP applications, customers sometimes use components from multiple transactional middleware products to assemble their TP environments.
Service Oriented Computing
Service Oriented Architecture (SOA) is a style of design in which applications are composed in whole or in part of reusable services. SOA aligns information systems technology well with business objectives by modeling an application as a composition of reusable services. In contrast to the object-oriented (OO) paradigm, services are designed to model functions rather than things. They are a natural abstraction of the concept of business services; that is, services that a business provides to its customers and partners. A service can be implemented using an object, but it need not be. For example, it may be implemented using a procedure, stored procedure, asynchronous message queue, or script. Services are characterized by the messages they exchange and by the interface contracts defined between the service requester and provider, rather than by the programs that are used to implement them.
Service orientation has been around for a long time as a concept. However, only recently has it become mainstream, with many large-scale web sites for web search, social networking, and e-commerce now offering service-oriented access to their functions. In part, this wide availability is due to the advent of standard Web Services protocols. Web Services is an implementation technology that enables independent programs to invoke one another reliably and securely over a network, especially the Internet. Many vendors now support Web Services protocols. This enables one to implement SOA in a multivendor environment, which is a requirement for most enterprises.
A TP system that is created in whole or in part using the SOA approach may include multiple reusable services offered by a single transaction program or by multiple distributed services. An SOA-based TP system may include both synchronous and asynchronous communications mechanisms, depending on the message exchange patterns that a given service supports and the execution environment in which it runs. SOA-based TP systems may be assembled using a combination of services from a variety of applications and using a variety of operating systems, middleware platforms, and programming languages.
Figure 1.3 illustrates the components of a service-oriented architecture. They include a service provider that offers a service, a requester that invokes a service, and a registry (sometimes called a repository) that publishes service descriptions. The service descriptions typically include the service interface, the name and format of data to be exchanged, the communications protocol to be used, and the quality of service that the interaction is required to support (such as its security and reliability characteristics and its transaction behavior).
A caller communicates with a service by sending messages, guided by a message exchange pattern. The basic pattern is a one-way asynchronous request message, where a caller sends a request message to the service provider and the service provider receives the message and executes the requested service. Other common patterns are request-response and publish-subscribe.
FIGURE 1.3 Basic Architecture of Service Orientation. A service provider publishes its
interface in the registry. A service requester uses the registry to find a service provider and
invokes it. The corresponding Web Service technologies are WSDL, UDDI, and SOAP.
The registry is an optional component because the requester can obtain service description information in other ways. For example, a developer who writes the requester can find the service description on a web site or be given the service description by the service's owner.
One mechanism to implement SOA is Web Services, where a service requester invokes a service provider using the protocol SOAP. The service interface offered by the service provider is defined in the Web Services Description Language (WSDL). The service provider makes this interface known by publishing it in a registry. The registry offers access to service descriptions via the Universal Description, Discovery, and Integration (UDDI) protocol. A service requester and provider can be running in different execution environments, such as Java Enterprise Edition or Microsoft. NET.
Web Service interfaces are available for virtually all information technology product categories: application servers, object request brokers, message oriented middleware systems, database management systems, and packaged applications. Thus, they provide interoperability, meaning that applications running on disparate software systems can communicate with each other. Web Services support transaction interoperability too, as defined in the Web Services Transactions specifications (discussed in Section 10.8).
Services simplify the assembly of new applications from existing ones by combining services. Tools and techniques are emerging to simplify the assembly of services, such as the Service Component Architecture for Java and the Windows Communication Foundation for Windows.
A TP application may exist as a combination of reusable services. The use of reusable services doesn't change the functions of the front-end program, request controller, or transaction server. However, it may affect the way the functions are designed, modeled, and implemented. For example, in Figure 1.2 , the decision to build the request controller as a reusable Web Service may affect the choice of implementation technologies, such as defining the interface to the request controller using WSDL and invoking it using SOAP. That decision may also affect the design by enabling an end-user device such as a web browser to call the request controller service(s) directly, bypassing the front-end program. We'll talk a lot more about TP software architecture in Chapter 3.
Representational State Transfer (REST) is another approach to SOA, rather different than that of Web Services. The term REST is used in two distinct but related ways: to denote the protocol infrastructure used for the World Wide Web, namely the Hypertext Transfer Protocol (HTTP); and to denote a software architectural pattern that can be implemented by web protocols. We use it here in the former sense, which we call REST/HTTP. We will discuss the REST architectural pattern in Section 3.3.
REST /HTTP focuses on the reuse of resources using a small set of generic HTTP operations, notably GET (i.e., read), PUT (i.e., update), POST (i.e., insert), and DELETE. This is in contrast to Web Services, which uses services that are customized for a particular application. Each HTTP operation is applied to a resource identified by a Uniform Resource Identifi er (URI). A registry function, as shown in Figure 1.3 , is needed to translate each URI into a network address where the resource can be found. On the Internet, this is implemented by the Domain Name System, which translates domain names such as www.mydomain.com into IP addresses.
The format of the representation is specified in the HTTP header; the content-type and accept fields specify the format of the input and output, respectively. Thus, instead of specifying data types in a service's interface definition, the caller specifies the data types it would like to receive. This flexibility makes it easier for diverse kinds of callers to invoke the service.
The computers that run these programs have a range of processing power. A display device could be a character-at-a-time terminal, a handheld device, a low-end PC, or a powerful workstation. Front-end programs, request controllers, transaction servers, and database systems could run on any kind of server machine, ranging from a low-end server machine, to a high-end multiprocessor mainframe, to a distributed system. A distributed system could consist of many computers, localized within a machine room or campus or geographically dispersed in a region or worldwide.
Some of these systems are quite small, such as a few display devices connected to a small machine on a PC Local Area Network (LAN). Big TP systems tend to be enterprise- wide or Internet-wide, such as airline and financial systems, Internet retailers, and auction sites. The big airline systems have on the order of 100,000 display devices (terminals, ticket printers, and boarding-pass printers) and thousands of disk drives, and execute thousands of transactions per second at their peak load. The biggest Internet systems have hundreds of millions of users, with tens of millions of them actively using the system at any one time.
Given this range of capabilities of computers that are used for TP, we need some terminology to distinguish among them. We use standard words for them, but in some cases with narrower meanings than is common in other contexts.
We define a machine to be a computer that is running a single operating system image. It could use a singlecore or multicore processor, or it could be a shared-memory multiprocessor. Or it might be a virtual machine that is sharing the underlying hardware with other virtual machines. A server machine is a machine that executes programs on behalf of client programs that typically execute on other computers. A system is a set of one or more machines that work together to perform some function. For example, a TP system is a system that supports one or more TP applications. A node (of a network) is a system that is accessed by other machines as if it were one machine. It may consist of several machines, each with its own network address. However, the system as a whole also has a network address, which is usually how other machines access it.
A server process is an operating system process, P , that executes programs on behalf of client programs executing in other processes on the same or different machines as the one where P is running. We often use the word "server" instead of "server machine " or "server process" when the meaning is obvious from context.
1.3 Atomicity, Consistency, Isolation, and Durability
There are four critical properties of transactions that we need to understand at the outset:
- Atomicity: The transaction executes completely or not at all.
- Consistency: The transaction preserves the internal consistency of the database.
- Isolation: The transaction executes as if it were running alone, with no other transactions.
- Durability: The transaction's results will not be lost in a failure.
This leads to an entertaining acronym, ACID. People often say that a TP system executes ACID transactions, in which case the TP system has "passed the ACID test." Let's look at each of these properties in turn and examine how they relate to each other.
First, a transaction needs to be atomic (or all-or-nothing), meaning that it executes completely or not at all. There must not be any possibility that only part of a transaction program is executed.
For example, suppose we have a transaction program that moves $100 from account A to account B. It takes $100 out of account A and adds it to account B. When this runs as a transaction, it has to be atomic — either both or neither of the updates execute. It must not be possible for it to execute one of the updates and not the other.
The TP system guarantees atomicity through database mechanisms that track the execution of the transaction. If the transaction program should fail for some reason before it completes its work, the TP system will undo the effects of any updates that the transaction program has already done. Only if it gets to the very end and performs all of its updates will the TP system allow the updates to become a permanent part of the database.
If the TP system fails, then as part of its recovery actions it undoes the effects of all updates by all transactions that were executing at the time of the failure. This ensures the database is returned to a known state following a failure, reducing the requirement for manual intervention during restart.
By using the atomicity property, we can write a transaction program that emulates an atomic business transaction, such as a bank account withdrawal, a flight reservation, or a sale of stock shares. Each of these business actions requires updating multiple data items. By implementing the business action by a transaction, we ensure that either all the updates are performed or none are.
The successful completion of a transaction is called commit. The failure of a transaction is called abort.
Handling Real-World Operations
During its execution, a transaction may produce output that is displayed back to the user. However, since the transaction program is all-or-nothing, until the transaction actually commits, any results that the transaction might display to the user should not be taken seriously, because it's still possible that the transaction will abort. Anything displayed on the display device could be wiped out in the database on abort.
Thus , any value that the transaction displays may be used by the end-user only if the transaction commits and not if the transaction aborts. This requires some care on the part of users (see Figure 1.4 ). If the system actually displays some of the results of a transaction before the transaction commits, and if the user utilizes any of these results as input to another transaction, then we have a problem. If the first transaction aborts and the second transaction commits, then the all-or-nothing property has been broken. That is, some of the results of the first transaction will be reflected in the results of the second transaction. But other results of the first transaction, such as its database updates, were not performed because the transaction aborted.
Some systems solve this problem simply by not displaying the result of a transaction until after the transaction commits, so the user can't inadvertently make use of the transaction's output and then have it subsequently abort. But this too has its problems (see Figure 1.5 ): If the transaction commits before displaying any of its results, and the system crashes before the transaction actually displays any of the results, then the user won't get a chance to see the output. Again, the transaction is not all-or-nothing; it executed all its database updates before it committed, but did not display its output.
We can make the problem more concrete by looking at it in the context of an automated teller machine (ATM) (see Figure 1.6 ). The output, for example, may be an operation that dispenses $100 from the ATM. If the system dispenses the $100 before the transaction commits, and the transaction ends up aborting, then the bank gives up the money but does not record that fact in the database. If the transaction commits and the system fails before it dispenses the $100, then the database says the $100 was given to the customer, but in fact the customer never got the money. In both cases, the transaction's behavior is not all-or-nothing.
FIGURE 1.4 Reading Uncommitted Results. The user read the uncommitted results of
transaction T 1 and fed them as input to transaction T2. Since T1 aborts, the input to T2 is

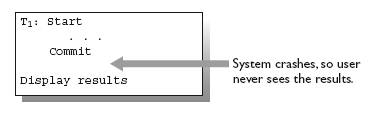

FIGURE 1.5 Displaying Results after Commits. This solves the problem of Figure 1.4 , but
if the transaction crashes before displaying the results, the results are lost forever.
A closely-related problem is that of ensuring that each transaction executes exactly once. To do this, the transaction needs to send an acknowledgment to its caller, such as sending a message to the ATM to dispense money, if and only if it commits. However, sending this acknowledgment is not enough to guarantee exactly once behavior because the caller cannot be sure how to interpret the absence of an acknowledgment. If the caller fails to receive an acknowledgment, it might be because the transaction aborted, in which case the caller needs to resubmit a request to run a transaction (to ensure the transaction executes once). Or it might be that the transaction committed but the acknowledgment got lost, in which case the caller must not resubmit a request to run the transaction because that would cause the transaction to execute twice. So if the caller wants exactly-once behavior, it needs to be sure that a transaction did not and will not commit before it's safe to resubmit the request to run the transaction.
Although these seem like unsolvable problems, they can actually be solved using persistent queues, which we'll describe in some detail in Chapter 4.

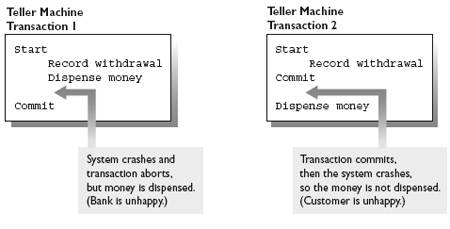

FIGURE 1.6 The Problem of Getting All-or-Nothing Behavior with Real-World Operations.
Whether the program dispenses money before or after it commits, it's possible that only one of the
operations executes: dispense the money or record the withdrawal.
Commitment is an irrevocable action. Once a transaction is committed, it can no longer be aborted. People do make mistakes, of course. So it may turn out later that it was a mistake to have executed a transaction that committed. At this point, the only course of action is to run another transaction that reverses the effect of the one that committed. This is called a compensating transaction. For example, if a deposit transaction was in error, then one can later run a withdrawal transaction that reverses its effect.
Sometimes, a perfect compensation is impossible, because the transaction performed some irreversible act. For example, it may have caused a paint gun to spray-paint a part the wrong color, and the part is long gone from the paint gun's work area when the error is detected. In this case, the compensating transaction may be to record the error in a database and send an e-mail message to someone who can take appropriate action.
Virtually any transaction can be executed incorrectly. So a well-designed TP application should include a compensating transaction type for every type of transaction.
Multistep Business Processes
Some business activities do not execute as a single transaction. For example, the activity of recording an order typically executes in a separate transaction from the one that processes the order. Since recording an order is relatively simple, the system can give excellent response time to the person who entered the order. The processing of the order usually requires several time-consuming activities that may require multiple transactions, such as checking the customer's credit, forwarding the order to a warehouse that has the requested goods in stock, and fulfilling the order by picking, packing, and shipping it.
Even though the business process executes as multiple transactions, the user may still want atomicity. Since multiple transactions are involved, this often requires compensating transactions. For example, if an order is accepted by the system in one transaction, but later on another transaction determines that the order can't be fulfilled, then a compensating transaction is needed to reverse the effect of the transaction that accepted the order. To avoid an unhappy customer, this often involves the universal compensating transaction, namely, an apology and a free gift certificate. It might also involve offering the customer a choice of either cancelling or telling the retailer to hold the order until the requested items have been restocked.
Transactional middleware can help manage the execution of multistep business processes. For example, it can keep track of the state of a multistep process, so if the process is unable to complete then the middleware can invoke compensating transactions for the steps that have already executed. These functions and others are discussed in Chapter 5, Business Process Management .
A second property of transactions is consistency — a transaction program should maintain the consistency of the database. That is, if you execute the transaction all by itself on a database that's initially consistent, then when the transaction finishes executing the database is again consistent.
By consistent, we mean "internally consistent." In database terms, this means that the database at least satisfies all its integrity constraints. There are several kinds of integrity constraints that database systems can typically maintain:
- All primary key values are unique (e.g., no two employee records have the same employee number).
- The database has referential integrity, meaning that records reference only objects that exist (e.g., the Part record and Customer record that are referenced by an Order record really exist).
- Certain data values are in a particular range (e.g., age is less than 120 and social security number is not null).
There are other kinds of integrity constraints that database systems typically cannot maintain but may nevertheless be important, such as the following:
- The sum of expenses in each department is less than or equal to the department's budget.
- The salary of an employee is bounded by the salary range of the employee's job level.
- The salary of an employee cannot decrease unless the employee is demoted to a lower job level.
Ensuring that transactions maintain the consistency of the database is good programming practice. However, unlike atomicity, isolation, and durability, consistency is a responsibility shared between transaction programs and the TP system that executes those programs. That is, a TP system ensures that transactions are atomic, isolated, and durable, whether or not they are programmed to preserve consistency. Thus, strictly speaking, the ACID test for transaction systems is a bit too strong, because the TP system does its part for the C in ACID only by guaranteeing AID. It's the application programmer's responsibility to ensure the transaction program preserves consistency.
There are consistency issues that reach out past the TP system and into the physical world that the TP application describes. An example is the constraint that the number of physical items in inventory equals the number of items on the warehouse shelf. This constraint depends on actions in the physical world, such as correctly reporting the restocking and shipment of items in the warehouse. Ultimately, this is what the enterprise regards as consistency.
The third property of a transaction is called isolation. We say that a set of transactions is isolated if the effect of the system running them is the same as if the system ran them one at a time. The technical definition of isolation is serializability. An execution is serializable (meaning isolated) if its effect is the same as running the transactions serially, one after the next, in sequence, with no overlap in executing any two of them. This has the same effect as running the transactions one at a time.
A classic example of a non-isolated execution is a banking system, where two transactions each try to withdraw the last $100 in an account. If both transactions read the account balance before either of them updates it, then both transactions will determine there's enough money to satisfy their requests, and both will withdraw the last $100. Clearly, this is the wrong result. Moreover, it isn't a serializable result. In a serial execution, only the first transaction to execute would be able to withdraw the last $100. The second one would find an empty account.
Notice that isolation is different from atomicity. In the example, both transactions executed completely, so they were atomic. However, they were not isolated and therefore produced undesirable behavior.
If the execution is serializable, then from the point of view of an end-user who submits a request to run a transaction, the system looks like a standalone system that's running that transaction all by itself. Between the time he or she runs two transactions, other transactions from other users may run. But during the period that the system is processing that one user's transaction, the user has the illusion that the system is doing no other work. This is only an illusion. It's too inefficient for the system to actually run transactions serially, because there is a lot of internal parallelism in the system that must be exploited by running transactions concurrently.
If each transaction preserves consistency, then any serial execution (i.e., sequence) of such transactions preserves consistency. Since each serializable execution is equivalent to a serial execution, a serializable execution of the transactions will preserve database consistency too. It is the combination of transaction consistency and isolation that ensures that the execution of a set of transactions preserves database consistency.
The database typically sets locks on data accessed by each transaction. The effect of setting the locks is to make the execution appear to be serial. In fact, internally, the system is running transactions in parallel, but through this locking mechanism the system gives the illusion that the transactions are running serially, one after the next. In Chapter 6, we will describe those mechanisms in more detail and present the rather subtle argument why locking actually produces serializable executions.
A common misconception is that serializability isn't important because the database system will maintain consistency by enforcing integrity constraints. However, as we saw in the previous section on consistency, there are many consistency constraints that database systems can't enforce. Moreover, sometimes users don't tell the database system to enforce certain constraints because they degrade performance. The last line of defense is that the transaction program itself maintains consistency and that the system guarantees serializability.
The fourth property of a transaction is durability. Durability means that when a transaction completes executing, all its updates are stored in stable storage; that is, storage that will survive the failure of power or the operating system. Today, stable storage (also called nonvolatile or persistent storage) typically consists of magnetic disk drives, though solid-state disks that use fl ash memory are making inroads as a viable alternative. Even if the transaction program fails, or the operating system fails, once the transaction has committed, its results are durably stored on stable storage and can be found there after the system recovers from the failure.
Durability is important because each transaction usually is providing a service to the user that amounts to a contract between the user and the enterprise that is providing the service. For example, if you're moving money from one account to another, once you get a reply from the transaction saying that it executed, you expect that the result is permanent. It's a legal agreement between the user and the system that the money has been moved between these two accounts. So it's essential that the transaction actually makes sure that the updates are stored on some stable storage device, to ensure that the updates cannot possibly be lost after the transaction finishes executing. Moreover, the durability of the result must be maintained for a long period, until it is explicitly overwritten or deleted by a later transaction. For example, even if a checking account is unused for several years, the owner expects to find her money there the next time she accesses it.
The durability property usually is obtained by having the TP system append a copy of all the transaction's updates to a log file while the transaction program is running. When the transaction program issues the commit operation, the system first ensures that all the records written to the log file are out on stable storage, and then returns to the transaction program, indicating that the transaction has indeed committed and that the results are durable. The updates may be written to the database right away, or they may be written a little later. However, if the system fails after the transaction commits and before the updates go to the database, then after the system recovers from the failure it must repair the database. To do this, it reads the log and checks that each update by a committed transaction actually made it to the database. If not, it reapplies the update to the database. When this recovery activity is complete, the system resumes normal operation. Thus, after the system recovers, any new transaction will read a database state that includes all the updates of transactions that committed before the failure (as well as those that committed after the recovery). We describe log-based recovery algorithms in Chapter 7.
